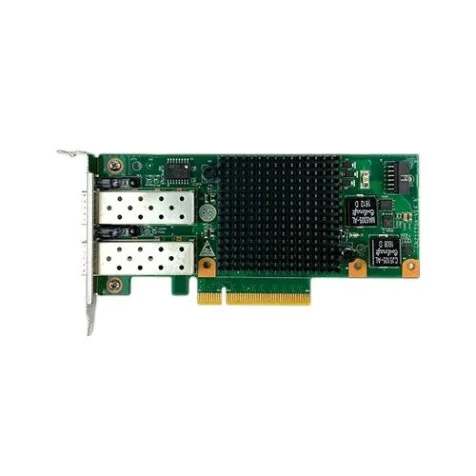

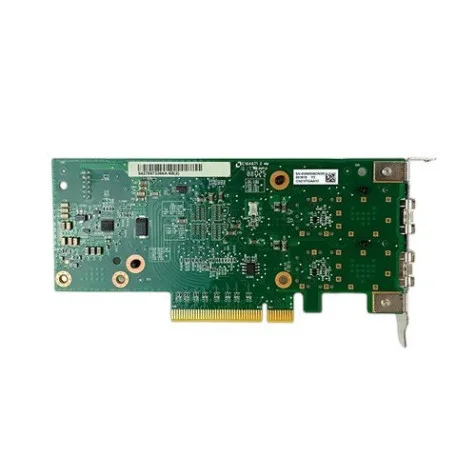

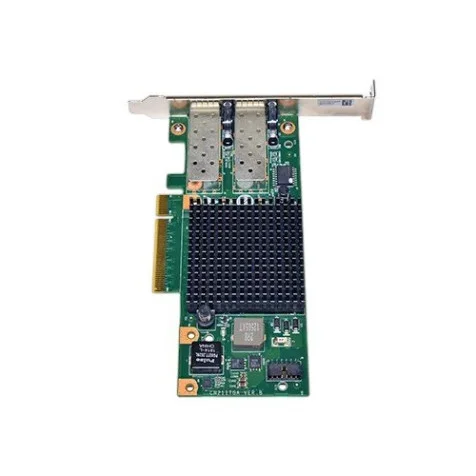

Huawei SP310 Intel PCIe x8 Dual-Port 10G SFP+ Ethernet Network Card

Key Features

• Dual-Port 10G SFP+ Ethernet – High-speed, low-latency connectivity ideal for enterprise servers and storage networks.
• Intel® 82599 10GbE Controller – Delivers exceptional reliability, power efficiency, and high-volume data transfer.
• PCI Express 2.0 x8 Interface (5GT/s) – Provides high-bandwidth data transmission with minimal CPU overhead.
• Unified Networking Support – Seamlessly integrates LAN, SAN, and IPC traffic for a simplified data center infrastructure.
• Advanced Virtualization Features – Supports VMDq, SR-IOV, and Virtual Machine Device Queues (VMDq) for optimized cloud computing and virtualized workloads.
• Energy-Efficient Design – Integrated SFI/KR PHYs ensure low power consumption and high performance.
• iSCSI & Fibre Channel over Ethernet (FCoE) Support – Optimized for storage networking and cloud computing.
• Extensive OS Compatibility – Supports Windows Server, Linux (RHEL, Ubuntu, Debian, SUSE), FreeBSD, and VMware.
• Enterprise-Grade Reliability – RoHS-compliant, CE, and FCC-certified for data center and high-performance computing (HPC) environments.

Technical Specifications

• General Specifications
• Model: Huawei SP310
• Controller: Intel® 82599 10GbE Ethernet Controller
• Ports: Dual SFP+ 10G Ethernet
• Interface: PCI Express 2.0 x8 (5GT/s)
• Bracket: Full-height (low-profile included in package)
• Form Factor: PCIe network adapter

Networking Features

• Dual 10G SFP+ Ports – Supports Direct-Attached Copper (DAC) & Fiber-Optic Cables
• IEEE 802.3 Compliant – Supports 10GBASE-SR, 10GBASE-LR
• Receive Side Scaling (RSS) – Optimized multi-threaded data processing
• Checksum Offloading & Jumbo Frame Support (Up to 15.5K) – Enhances network efficiency and reduces CPU load
• Advanced Traffic Optimization – Supports interrupt throttling, load balancing, and RMON statistics monitoring
• PXE Boot & iSCSI Remote Boot Support – Enables remote system deployment
• Virtualization & Cloud Optimization
• Supports VMDq & SR-IOV – Accelerates virtual machine networking and reduces CPU overhead
• IPv4 & IPv6 Support – Future-proof networking for next-gen infrastructures
• VXLAN & VLAN Support – Optimized for cloud environments and multi-tenant networks

Manageability & Security

• PXE Boot, SNMP, RMON Support – Advanced network monitoring and remote management
• Link & Activity LED Indicators – Visual status for easy troubleshooting
• NC-SI (Network Controller Sideband Interface) – For seamless remote management
• Cables & Connectivity
• Supports SFP+ Direct-Attach Copper (DAC) Cables – Up to 10m
• Supports LC-LC Fiber-Optic Cables – (Requires SFP+ optical transceivers)

Operating System Compatibility

• Windows Client: Windows 10, 8.1, 8, 7
• Windows Server: 2012, 2012 R2, 2016, 2019
• Linux: Mikrotik ROS, RHEL 9.1 & 8.7, SLES 15 SP4, SLES 12 SP5, Ubuntu 22.04 LTS/20.04 LTS, Debian 11, FreeBSD 13/12.3
• VMware: Fully supported for virtualization
• Environmental & Power Specifications
• Power Consumption: Max. 7.0W
• Airflow Requirement: Minimum 100 LFM
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Humidity: Up to 90% non-condensing at 35°C
• Certifications: CE, FCC, RoHS

Ideal Applications

• Enterprise Data Centers – Provides high-speed, low-latency networking for high-performance computing and cloud workloads.
• Virtualized Environments – Supports VMDq, SR-IOV, and VXLAN for seamless cloud integration.
• Storage Networking (iSCSI & FCoE) – Ideal for SAN, NAS, and high-performance storage applications.
• High-Performance Computing (HPC) – Delivers ultra-low latency and high bandwidth.
• ISP & Hosting Providers – Ensures scalable and reliable networking solutions.
• Remote Server Management – NC-SI enables efficient out-of-band server management.

Why Choose the Huawei SP310 Dual-Port 10G SFP+ Ethernet Network Card?

• Blazing-Fast 10G SFP+ Connectivity – Seamless, high-speed networking for data centers and cloud applications.
• Intel® 82599 Controller – Optimized for high-reliability, power efficiency, and enterprise-grade performance.
• PCI Express 2.0 (x8) Interface – Maximizes bandwidth and reduces CPU overhead.
• Virtualization & Cloud-Ready – Supports VXLAN, VMDq, and SR-IOV for cloud-based deployments.
• Unified Networking for LAN, SAN & IPC – Streamlines network infrastructure and improves efficiency.
• Energy-Efficient & Reliable – Low power consumption and RoHS compliance for sustainable data centers.
• Wide OS Compatibility – Supports Windows Server, Linux, VMware, and FreeBSD.
