Hikvision Cat-6 305 Meter Copper Network Cable
SKU
177382038771235
People are viewing right now

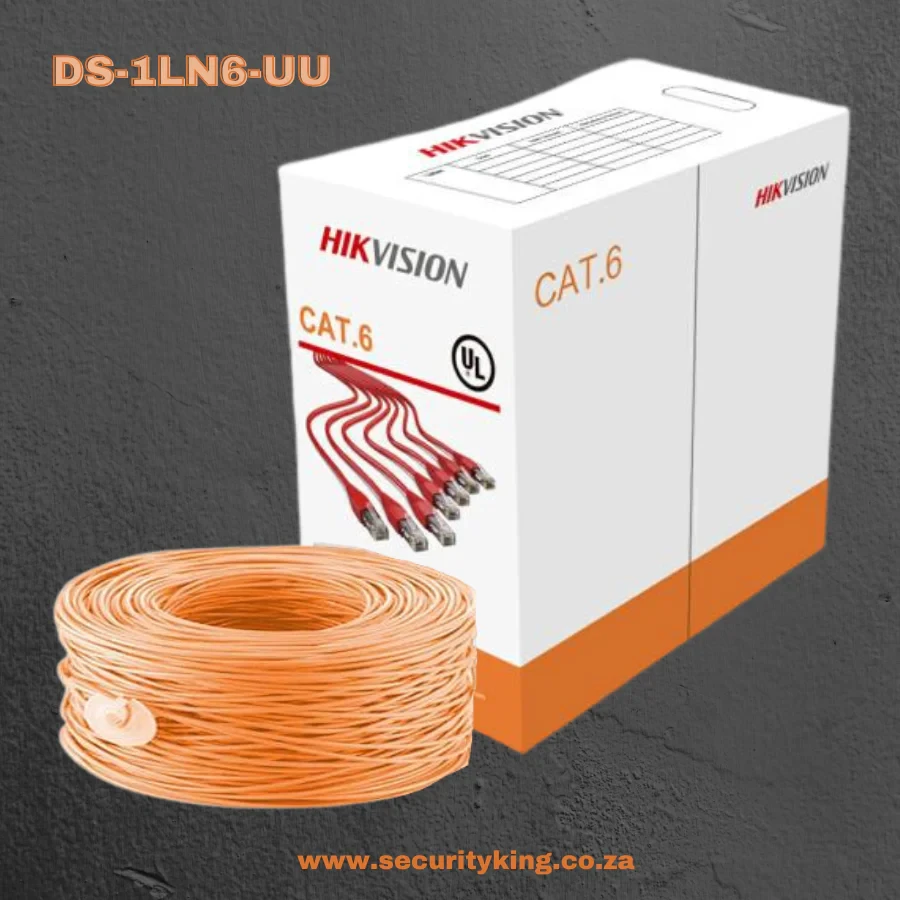

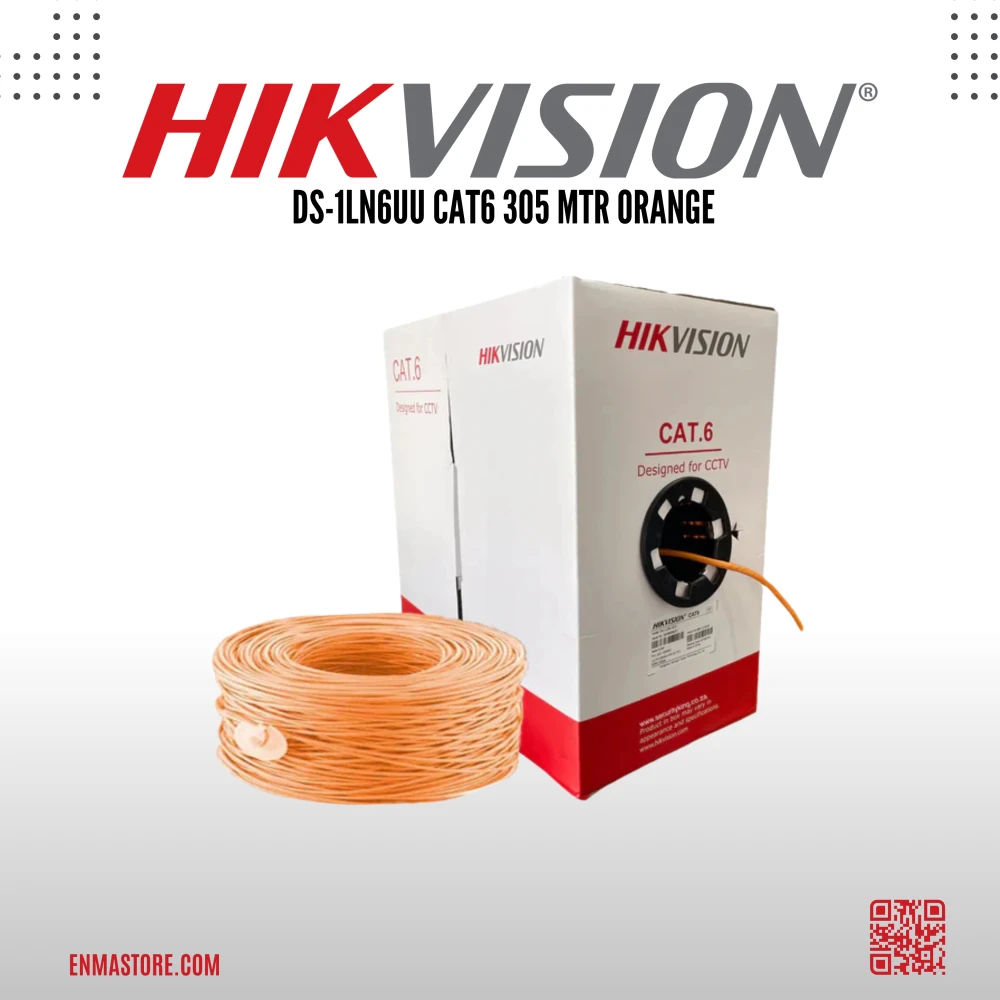

Hikvision Cat 6 Ethernet Cable – Orange
The Hikvision Cat 6 UTP Ethernet Cable (Orange) is a high-performance copper network cable engineered for reliable and efficient data transmission. Ideal for surveillance systems, office networks, and high-speed internet connections, this cable delivers stable gigabit Ethernet performance and supports Power over Ethernet (PoE). The bright orange PVC sheath allows for easy cable identification and management in structured cabling installations.
Key Features:
- Category: Cat 6 UTP (Unshielded Twisted Pair)
- Conductor Material: Solid bare copper (99.95% purity)
- Conductor Diameter: 0.55 ± 0.005 mm (23 AWG)
- Insulation: High-Density Polyethylene (HDPE)
- Insulation Diameter: 0.98 ± 0.05 mm
- Sheath Material: PVC (Polyvinyl Chloride)
- Outer Diameter: 6.00 ± 0.30 mm
- Sheath Thickness: 0.50 ± 0.10 mm
- Sheath Color: Orange
- Rip Cord: Yes
- Central Separator: Yes (enhances crosstalk resistance)
- Operating Voltage: 60V
- Temperature Range: -20°C to +75°C
- Flame Retardant: No (non-fire-resistant version)
- Compliance Standards: ANSI/TIA-568-C.2, ISO/IEC 11801, RoHS 2.0
- Electrical Performance:
- Bandwidth: Up to 250 MHz
- Data Transmission Speed: Up to 1 Gbps
- Impedance: 100 ± 15 ohms (≤100 MHz), 100 ± 25 ohms (100–250 MHz)
- DC Resistance: ≤ 9.38 ohms per 100 meters
- DC Resistance Unbalance: ≤ 5.0%
- Delay Skew: ≤ 45 ns per 100 meters
Applications:
IP CCTV systems
PoE (Power over Ethernet) devices
Routers, switches, patch panels
Data centers and enterprise networks
Home or office structured cabling
