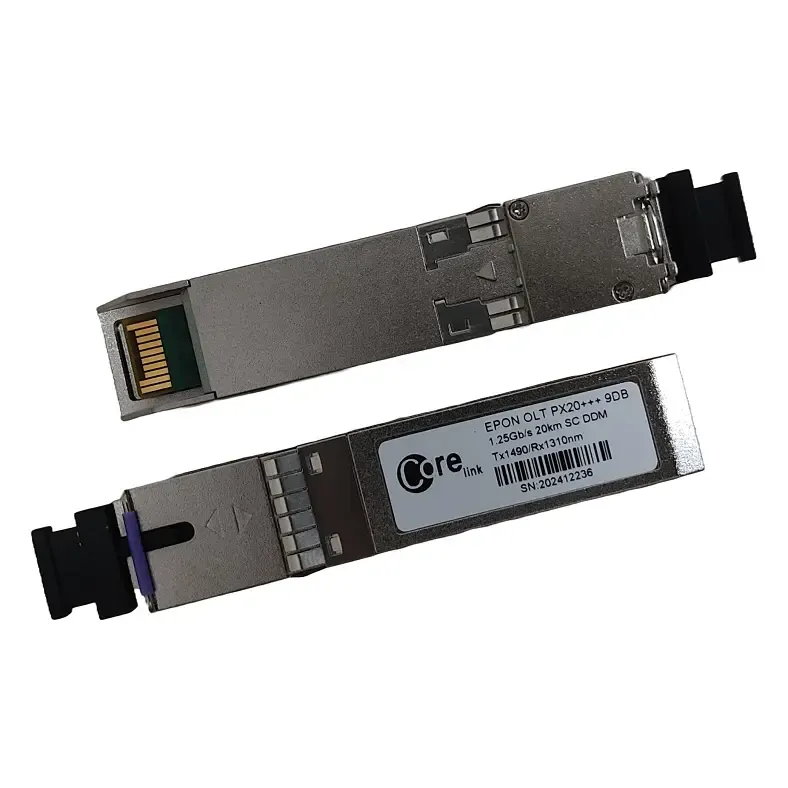

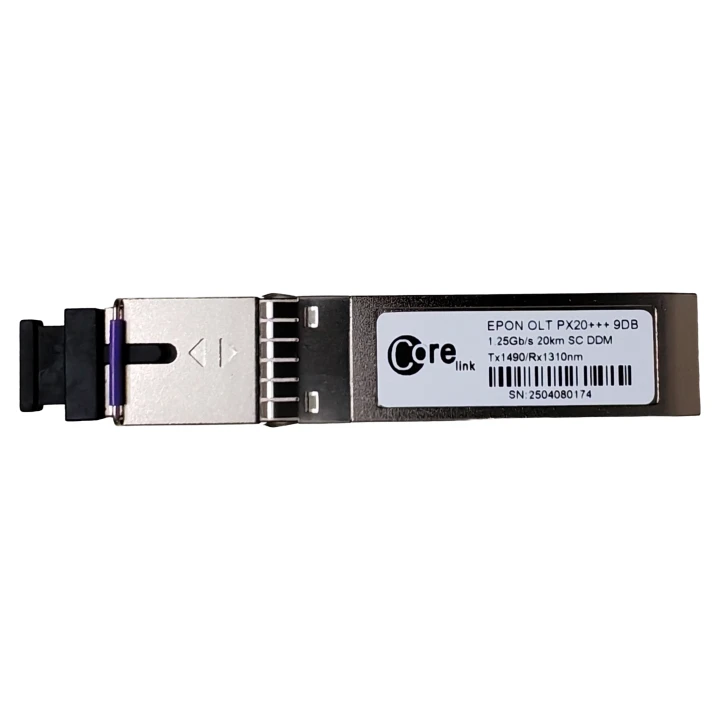

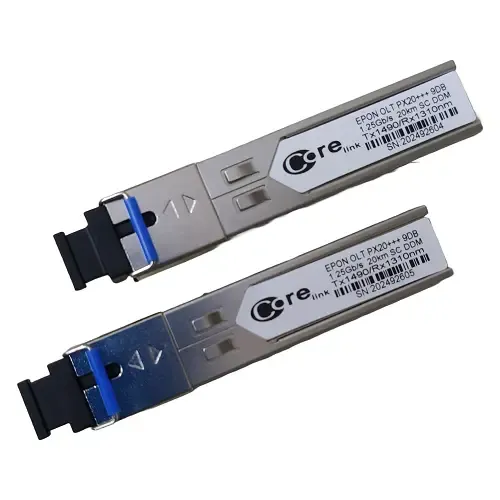

Corelink EPON OLT PON SFP Module 1.5G C+++ 9dBm
Corelink EPON OLT PON SFP Module 1.25G C+++ | 20km 9dBm High-Power Fiber Optic Module
Boost your fiber network performance with the Corelink EPON OLT PON SFP Module 1.25G C+++ 9dBm, designed for Gigabit Ethernet Passive Optical Network (EPON) applications. Engineered for OLT (Optical Line Terminal) systems, this high-quality, hot-swappable SFP transceiver delivers fast, stable, and long-distance fiber connectivity — up to 20 kilometers — with a powerful +9dBm optical output.
Ideal for FTTH (Fiber to the Home), FTTB (Fiber to the Building), and metro network applications, this industrial-grade module ensures reliable performance in extreme temperatures.
Why Choose the Corelink EPON OLT SFP Module?
- Ultra-Fast 1.25Gbps Data Rate – High-speed bidirectional transmission (TX/RX).
- Long-Distance Support – Transmit up to 20km over single-mode fiber (SMF).
- High Optical Power – +3 to +9 dBm ensures strong, stable signal.
- C+++ Grade Industrial Design – Withstands harsh environments (-40°C to +85°C).
- Digital Diagnostics Monitoring (DDM) – Real-time diagnostics of temperature, voltage, and optical power.
- IEEE 802.3ah Compliant – 100% compatible with industry-standard OLT equipment.
- SC/UPC Connector – Easy and secure fiber connection.
- Energy Efficient & Plug-and-Play – Simple installation, low power consumption.
Product Specifications:
- Brand: Corelink
- Data Rate: 1.25Gbps Downstream / Upstream
- Wavelength: TX: 1490nm / RX: 1310nm
- Transmission Distance: Up to 20km
- Output Power: +3 to +9 dBm
- Receiver Sensitivity: -30 dBm
- Connector Type: SC/UPC
- DDM/DOM: Supported
- Operating Temp. : -40°C to +85°C (C+++ Grade)
- Compliance IEEE 802.3ah, SFP MSA, RoHS
Compatible with All major EPON OLT brands
Best Use Cases:
EPON OLT modules for Fiber-to-the-Home (FTTH) deployments
Passive Optical Network (PON) architecture
Metro Ethernet and long-distance fiber communication
ISP and telecom backbone networks
Industrial-grade fiber optic networks
